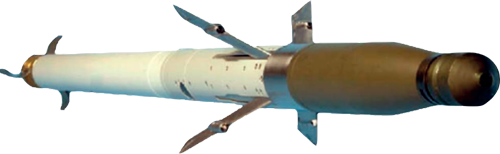

Advanced Warhead Systems for 70mm Rockets

Air (Fixed and Rotary) and Ground Launched – Guided and Unguided.

No electrical connections to launch pod or launch plataform required. Mixed launch pod rocket warhead type matched to targets.

OTB-EP1: ENHANCED FRAGMENTATION WARHEAD SYSTEM WITH PROXIMITY/IMPACT FUZE

TARGETS: Aircraft and Helicopters in the open and in–flight, UAV, Cruise Missiles, Gun/Scud Emplacements, Troops Ships and Patrol Boats, Oil Refineries.

WARHEAD PERFORMANCE: Fragment Beam 50-70 degrees; Penetrating Fragments – >1100; Fragment Density (average at 4 metres) – 14.6 per metre sq.; Fragment Residual Velocity >80 metres/sec after perforating 3mm aluminum alloy

FUZE PERFORMANCE: Proximity Burst at 0 to 1 metre or 1 – 4 metres (fuze selectable)

WARHEAD SYSTEM: MURAT/IM Compliant, Interchangeable with M151 Warhead and Fuzing System (Mass Characteristics and Dimensions). Compliant with NATO Standards

OTB-AA1: ANTI-ARMOUR WARHEAD SYSTEM WITH PROXIMITY/IMPACT FUZE

TARGETS: Main Battle Tanks, APC, Light Skinned Vehicles, Ships and Patrol Boats

WARHEAD PERFORMANCE: Perforation/Penetration of up to 400mmRHA

FUZE PERFORMANCE: Standoff Initiation at 0 to 1 metre or Impact (fuze selectable)

WARHEAD SYSTEM: MURAT/IM Compliant, Interchangeable with M151 Warhead and Fuzing System (Mass Characteristics and Dimensions). Compliant with NATO Standards

OTB-AS1: ANTI-STRUCTURES WARHEAD SYSTEM WITH IMPACT/DELAY FUZE

TARGETS: Hardened Aircraft Structures, Command and Control Bunkers, Buildings, Weapon Storage
Bunkers.

WARHEAD PERFORMANCE: Perforation/Penetration of up to 700mm reinforced concrete

FUZE PERFORMANCE: Impact, Post Impact Delay Matched to Target (Factory Selectable)

WARHEAD SYSTEM: MURAT/IM Compliant, Interchangeable with M151 Warhead and Fuzing System (Mass Characteristics and Dimensions). Compliant with NATO Standards

OTB-FR-1: FLETCHETTE ROUND WITH PROXIMITY FUZE

TARGETS: Aircraft and Helicopters in the open, Troops in the open, trenches and wooded areas, Light Skinned Vehicles.

WARHEAD PERFORMANCE: 900 Steel and Tungsten Fletchettes with controlled dispersal from target to maximize performance and eliminate collateral damage and risk to friendly troops.

FUZE PERFORMANCE: Proximity Burst at 8 to 12 metres to control pattern of fletchettes

WARHEAD SYSTEM: MURAT/IM Compliant, Interchangeable with M151 Warhead and Fuzing
